Simulation 0013

Metadata Field

Value

Simulation ID

0013

Name

q4_precessing

Mass Ratio

4

Spin 1

(0.487, 0.125, -0.327)

Spin 2

(-0.19, 0.051, -0.227)

Final Mass

0.981

Final Spin

0.43

Spherical harmonics (included in the fits):

[(2, 2), (3, 2), (3, 3), (4, 3), (4, 4), (5, 4), (5, 5), (6, 5), (6, 6), (7, 6), (4, -4), (5, -4), (5, -5), (6, -5), (6, -6), (7, -6), (2, -2), (3, -2), (3, -3), (4, -3)]

Target harmonics (included in the figures):

[(2, 2), (3, 3), (4, 4), (5, 5), (6, 6), (2, -2), (3, -3), (4, -4), (5, -5), (6, -6)]

Candidate modes considered:

Tuples of length 2 / 4 / 8 / 12 are constant terms / QNMs / quadratic QNMs / cubic QNMs.

[(2, 2, 1, 1), (2, 2, 2, 1), (2, 2, 3, 1), (2, 2, 4, 1), (2, 2, 5, 1), (2, 2, 6, 1), (3, 2, 1, 1), (3, 2, 2, 1), (3, 2, 3, 1), (3, 2, 4, 1), (3, 2, 5, 1), (3, 2, 6, 1), (2, 2, 0, -1), (2, 2, 1, -1), (2, 2, 2, -1), (2, 2, 3, -1), (2, 2, 4, -1), (2, 2, 5, -1), (2, 2, 6, -1), (3, 2, 0, -1), (3, 2, 1, -1), (3, 2, 2, -1), (3, 2, 3, -1), (3, 2, 4, -1), (3, 2, 5, -1), (3, 2, 6, -1), (2, 2), (3, 2), (3, 3, 1, 1), (3, 3, 2, 1), (3, 3, 3, 1), (3, 3, 4, 1), (3, 3, 5, 1), (3, 3, 6, 1), (4, 3, 1, 1), (4, 3, 2, 1), (4, 3, 3, 1), (4, 3, 4, 1), (4, 3, 5, 1), (4, 3, 6, 1), (3, 3, 0, -1), (3, 3, 1, -1), (3, 3, 2, -1), (3, 3, 3, -1), (3, 3, 4, -1), (3, 3, 5, -1), (3, 3, 6, -1), (4, 3, 0, -1), (4, 3, 1, -1), (4, 3, 2, -1), (4, 3, 3, -1), (4, 3, 4, -1), (4, 3, 5, -1), (4, 3, 6, -1), (3, 3), (4, 3), (4, 4, 1, 1), (4, 4, 2, 1), (4, 4, 3, 1), (4, 4, 4, 1), (4, 4, 5, 1), (4, 4, 6, 1), (5, 4, 1, 1), (5, 4, 2, 1), (5, 4, 3, 1), (5, 4, 4, 1), (5, 4, 5, 1), (5, 4, 6, 1), (4, 4, 0, -1), (4, 4, 1, -1), (4, 4, 2, -1), (4, 4, 3, -1), (4, 4, 4, -1), (4, 4, 5, -1), (4, 4, 6, -1), (5, 4, 0, -1), (5, 4, 1, -1), (5, 4, 2, -1), (5, 4, 3, -1), (5, 4, 4, -1), (5, 4, 5, -1), (5, 4, 6, -1), (4, 4), (5, 4), (2, 2, 0, 1, 2, 2, 0, 1), (5, 5, 1, 1), (5, 5, 2, 1), (5, 5, 3, 1), (5, 5, 4, 1), (5, 5, 5, 1), (5, 5, 6, 1), (6, 5, 1, 1), (6, 5, 2, 1), (6, 5, 3, 1), (6, 5, 4, 1), (6, 5, 5, 1), (6, 5, 6, 1), (5, 5, 0, -1), (5, 5, 1, -1), (5, 5, 2, -1), (5, 5, 3, -1), (5, 5, 4, -1), (5, 5, 5, -1), (5, 5, 6, -1), (6, 5, 0, -1), (6, 5, 1, -1), (6, 5, 2, -1), (6, 5, 3, -1), (6, 5, 4, -1), (6, 5, 5, -1), (6, 5, 6, -1), (5, 5), (6, 5), (2, 2, 0, 1, 3, 3, 0, 1), (6, 6, 1, 1), (6, 6, 2, 1), (6, 6, 3, 1), (6, 6, 4, 1), (6, 6, 5, 1), (6, 6, 6, 1), (7, 6, 1, 1), (7, 6, 2, 1), (7, 6, 3, 1), (7, 6, 4, 1), (7, 6, 5, 1), (7, 6, 6, 1), (6, 6, 0, -1), (6, 6, 1, -1), (6, 6, 2, -1), (6, 6, 3, -1), (6, 6, 4, -1), (6, 6, 5, -1), (6, 6, 6, -1), (7, 6, 0, -1), (7, 6, 1, -1), (7, 6, 2, -1), (7, 6, 3, -1), (7, 6, 4, -1), (7, 6, 5, -1), (7, 6, 6, -1), (6, 6), (7, 6), (3, 3, 0, 1, 3, 3, 0, 1), (2, 2, 0, 1, 4, 4, 0, 1), (2, 2, 0, 1, 2, 2, 0, 1, 2, 2, 0, 1), (4, -4, 1, 1), (4, -4, 2, 1), (4, -4, 3, 1), (4, -4, 4, 1), (4, -4, 5, 1), (4, -4, 6, 1), (5, -4, 1, 1), (5, -4, 2, 1), (5, -4, 3, 1), (5, -4, 4, 1), (5, -4, 5, 1), (5, -4, 6, 1), (4, -4, 0, -1), (4, -4, 1, -1), (4, -4, 2, -1), (4, -4, 3, -1), (4, -4, 4, -1), (4, -4, 5, -1), (4, -4, 6, -1), (5, -4, 0, -1), (5, -4, 1, -1), (5, -4, 2, -1), (5, -4, 3, -1), (5, -4, 4, -1), (5, -4, 5, -1), (5, -4, 6, -1), (4, -4), (5, -4), (2, -2, 0, -1, 2, -2, 0, -1), (5, -5, 1, 1), (5, -5, 2, 1), (5, -5, 3, 1), (5, -5, 4, 1), (5, -5, 5, 1), (5, -5, 6, 1), (6, -5, 1, 1), (6, -5, 2, 1), (6, -5, 3, 1), (6, -5, 4, 1), (6, -5, 5, 1), (6, -5, 6, 1), (5, -5, 0, -1), (5, -5, 1, -1), (5, -5, 2, -1), (5, -5, 3, -1), (5, -5, 4, -1), (5, -5, 5, -1), (5, -5, 6, -1), (6, -5, 0, -1), (6, -5, 1, -1), (6, -5, 2, -1), (6, -5, 3, -1), (6, -5, 4, -1), (6, -5, 5, -1), (6, -5, 6, -1), (5, -5), (6, -5), (2, -2, 0, -1, 3, -3, 0, -1), (6, -6, 1, 1), (6, -6, 2, 1), (6, -6, 3, 1), (6, -6, 4, 1), (6, -6, 5, 1), (6, -6, 6, 1), (7, -6, 1, 1), (7, -6, 2, 1), (7, -6, 3, 1), (7, -6, 4, 1), (7, -6, 5, 1), (7, -6, 6, 1), (6, -6, 0, -1), (6, -6, 1, -1), (6, -6, 2, -1), (6, -6, 3, -1), (6, -6, 4, -1), (6, -6, 5, -1), (6, -6, 6, -1), (7, -6, 0, -1), (7, -6, 1, -1), (7, -6, 2, -1), (7, -6, 3, -1), (7, -6, 4, -1), (7, -6, 5, -1), (7, -6, 6, -1), (6, -6), (7, -6), (3, -3, 0, -1, 3, -3, 0, -1), (2, -2, 0, -1, 4, -4, 0, -1), (2, -2, 0, -1, 2, -2, 0, -1, 2, -2, 0, -1), (2, -2, 1, 1), (2, -2, 2, 1), (2, -2, 3, 1), (2, -2, 4, 1), (2, -2, 5, 1), (2, -2, 6, 1), (3, -2, 1, 1), (3, -2, 2, 1), (3, -2, 3, 1), (3, -2, 4, 1), (3, -2, 5, 1), (3, -2, 6, 1), (2, -2, 0, -1), (2, -2, 1, -1), (2, -2, 2, -1), (2, -2, 3, -1), (2, -2, 4, -1), (2, -2, 5, -1), (2, -2, 6, -1), (3, -2, 0, -1), (3, -2, 1, -1), (3, -2, 2, -1), (3, -2, 3, -1), (3, -2, 4, -1), (3, -2, 5, -1), (3, -2, 6, -1), (2, -2), (3, -2), (3, -3, 1, 1), (3, -3, 2, 1), (3, -3, 3, 1), (3, -3, 4, 1), (3, -3, 5, 1), (3, -3, 6, 1), (4, -3, 1, 1), (4, -3, 2, 1), (4, -3, 3, 1), (4, -3, 4, 1), (4, -3, 5, 1), (4, -3, 6, 1), (3, -3, 0, -1), (3, -3, 1, -1), (3, -3, 2, -1), (3, -3, 3, -1), (3, -3, 4, -1), (3, -3, 5, -1), (3, -3, 6, -1), (4, -3, 0, -1), (4, -3, 1, -1), (4, -3, 2, -1), (4, -3, 3, -1), (4, -3, 4, -1), (4, -3, 5, -1), (4, -3, 6, -1), (3, -3), (4, -3)]

Mode Content

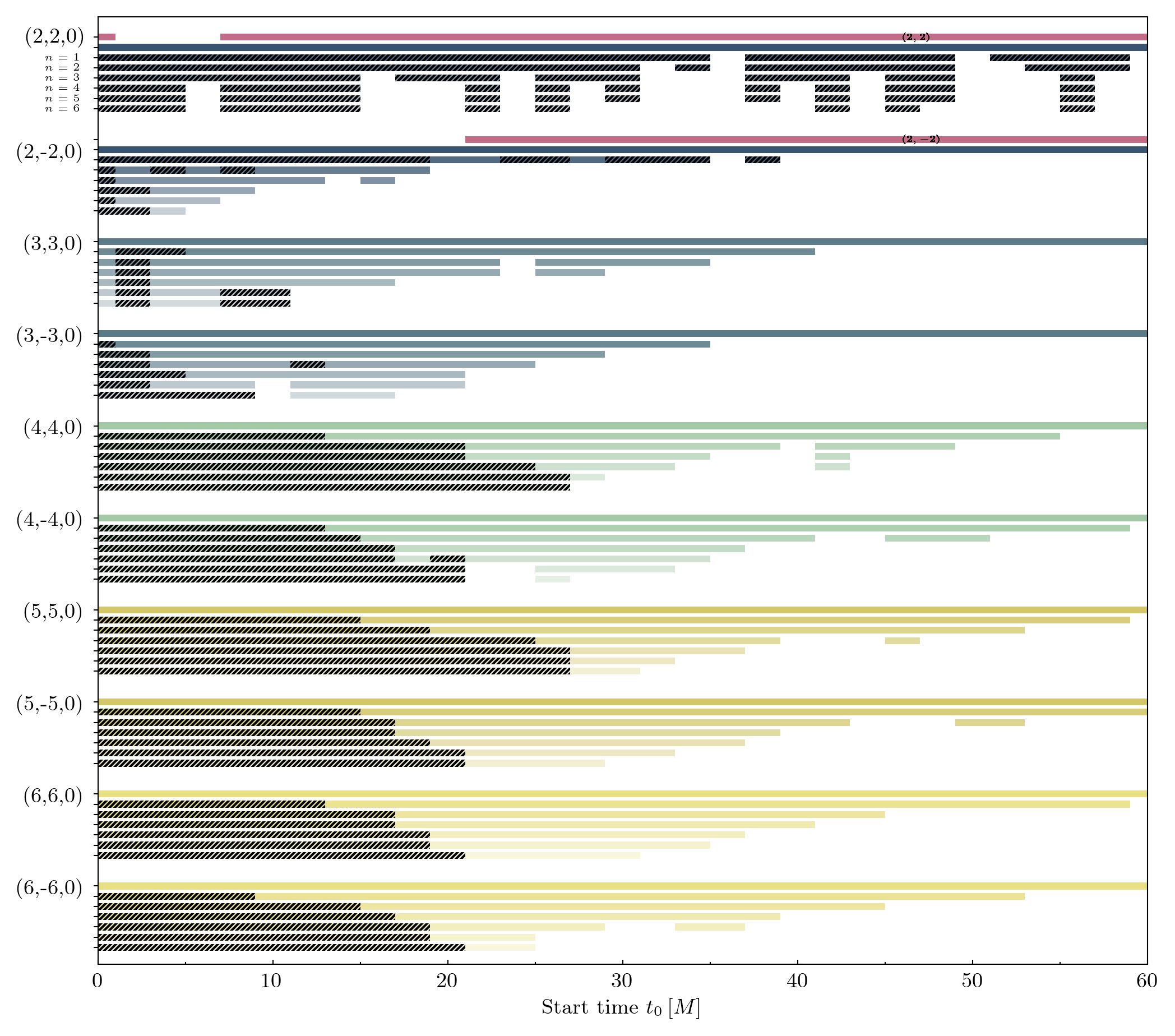

Times QNMs are present is shown below. Solid lines indicate prograde modes, hatched lines indicate retrograde modes. Vertical grey shaded regions (where present) show poor fit times.

Additional Notes

For this highly precessing system, we have found that QNM fits, and our algorithm, produce unreliable results. Therefore while we include the results from this simulation for completeness, we caution the reader against drawing any conclusions from them.

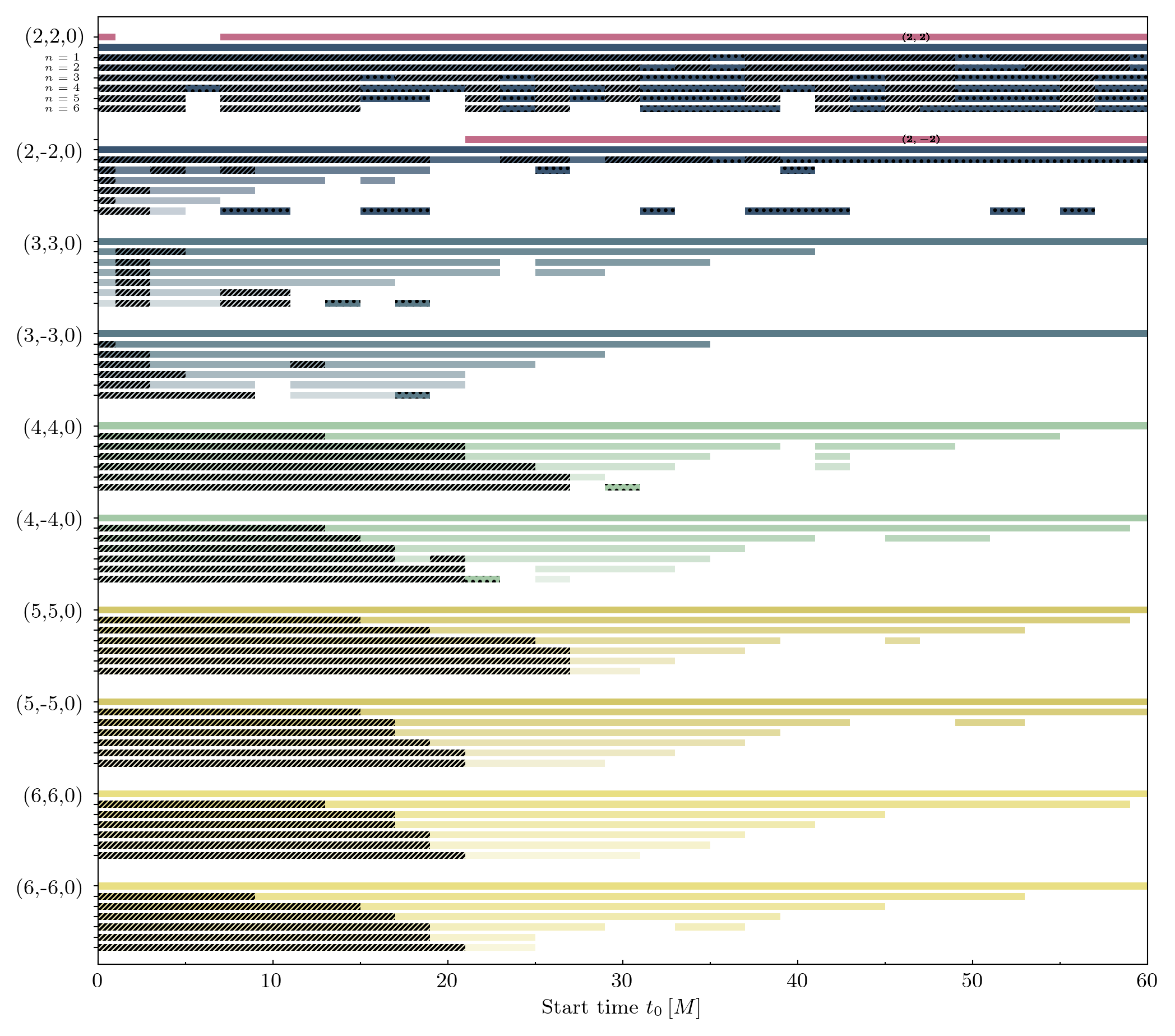

This simulation contains multiple instances of a retrograde mode present without a prograde mode, which, in this exceptional case, have been shown on a separate plot as dotted regions. Furthermore, this is the only simulation found to contain a constant offset, which is shown in pink on the plots.

mode_content.png mode_content_retrograde.png

Amplitude Stability

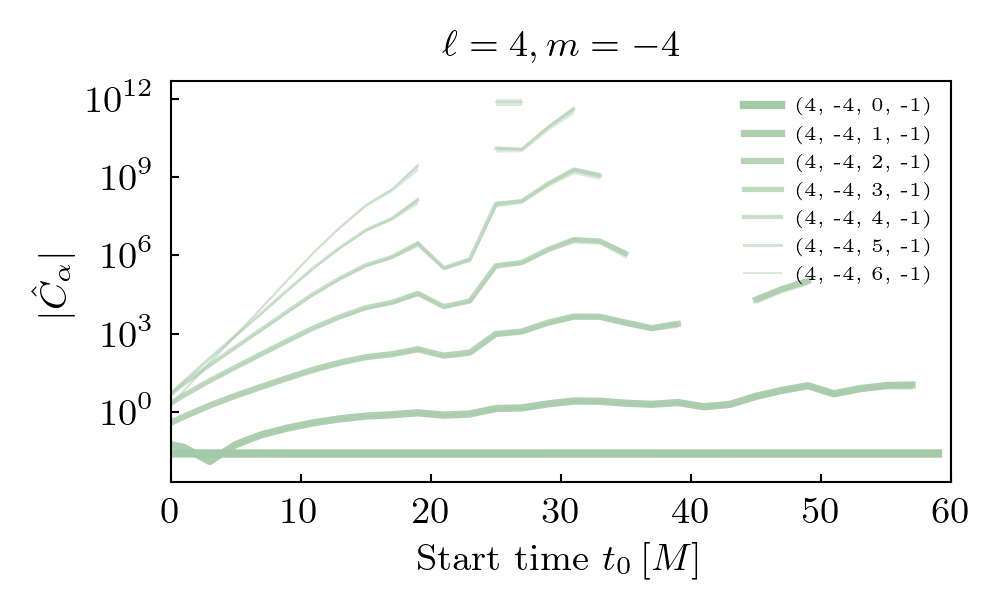

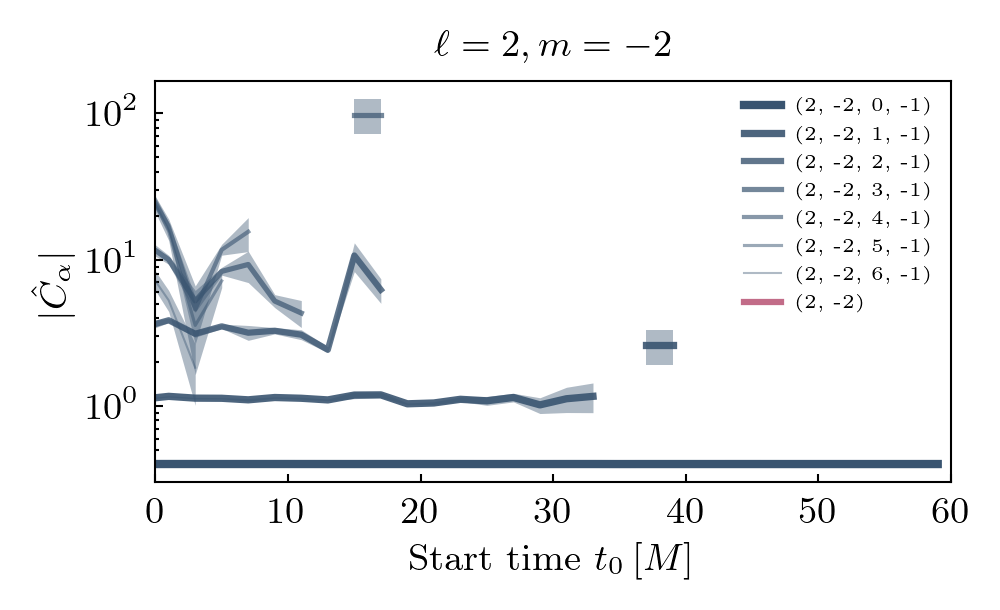

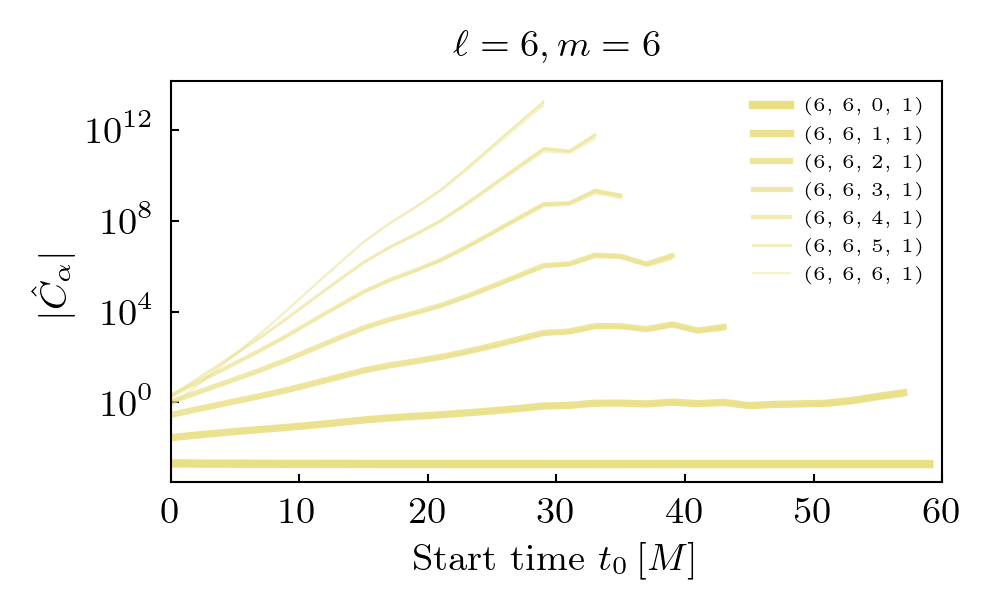

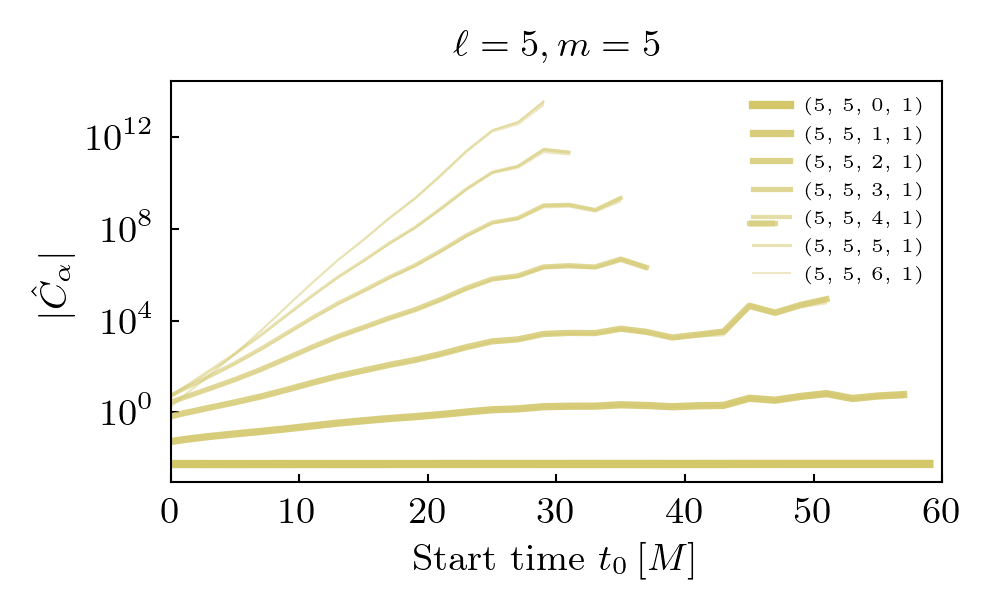

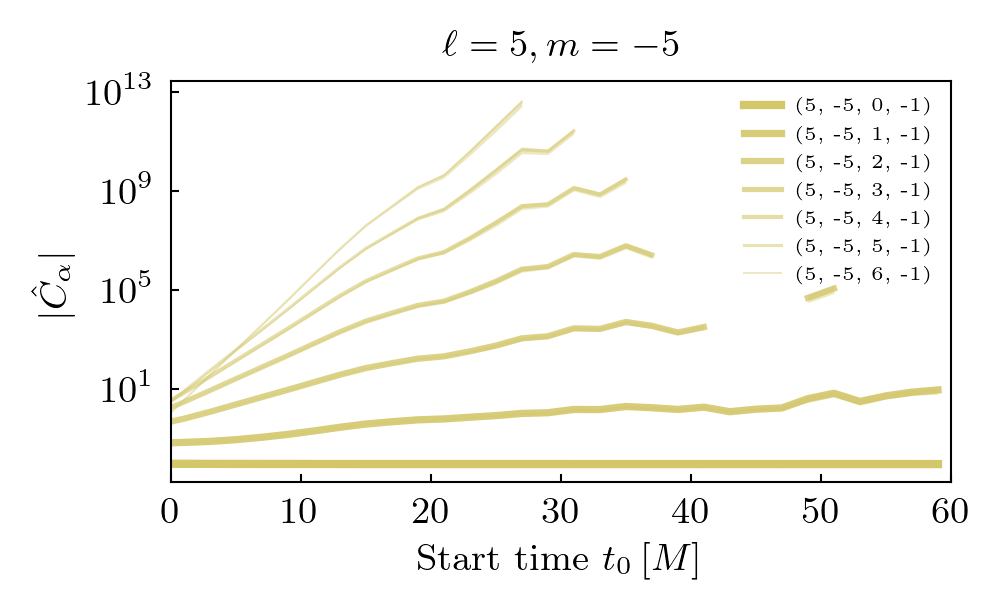

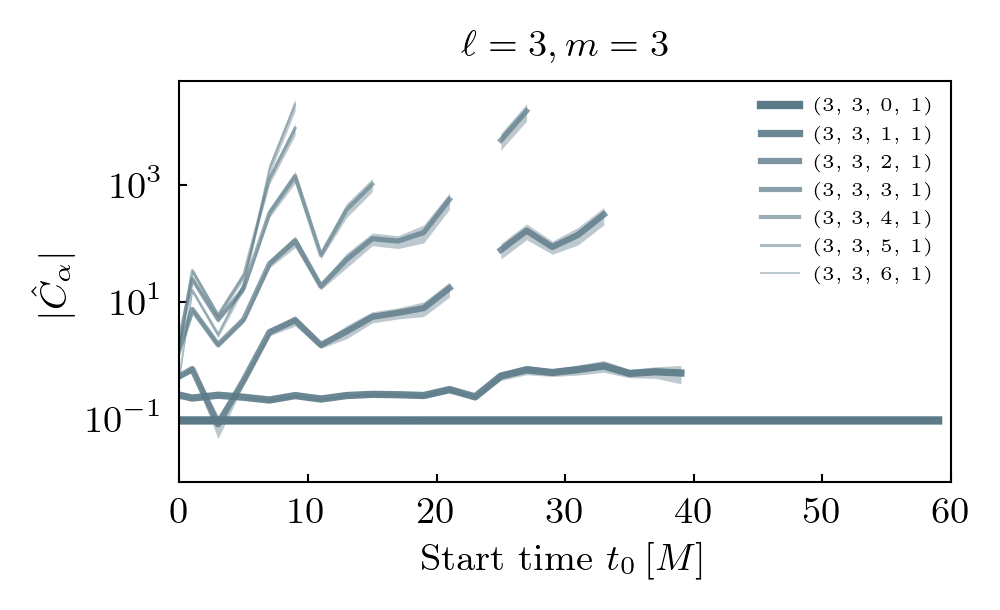

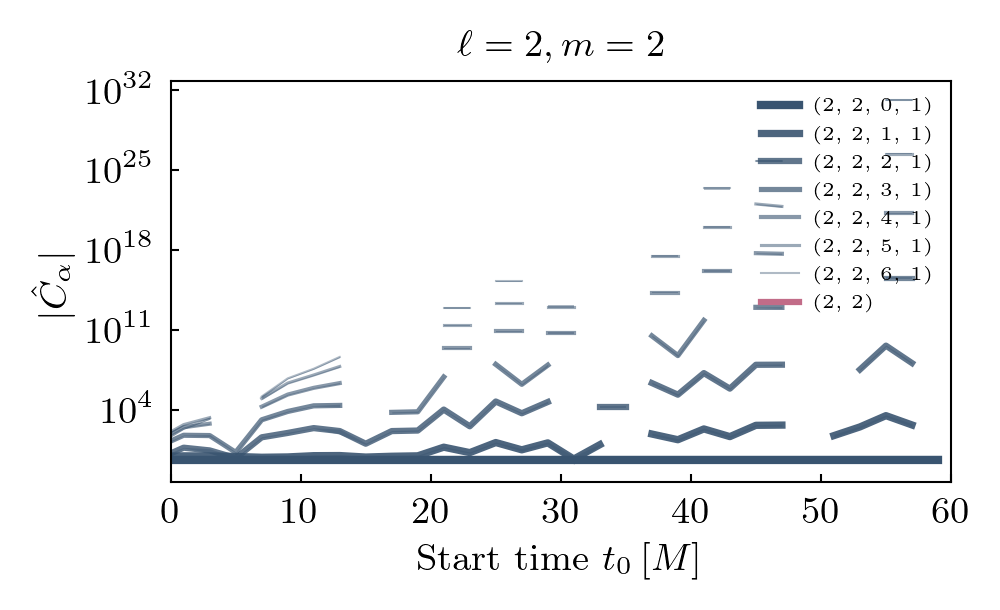

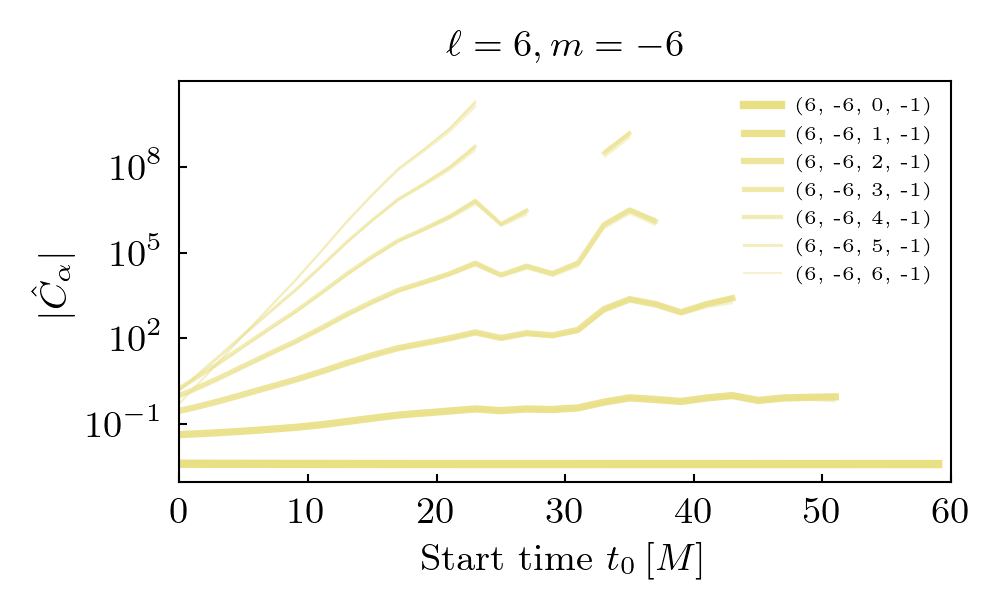

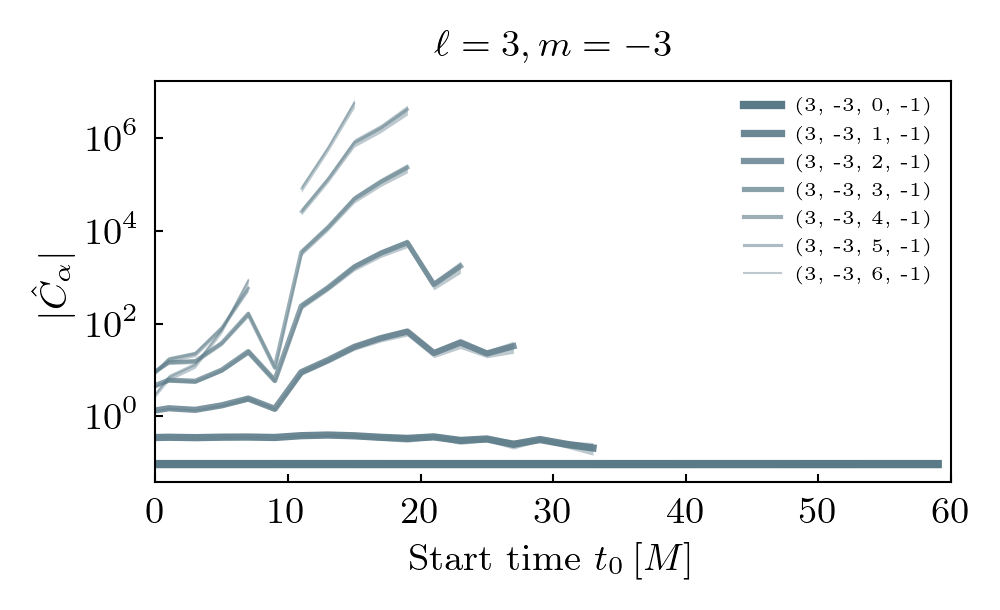

Decay-corrected amplitudes are shown with the median as a bold line and 90% region shaded. Vertical grey shaded regions (where present) show poor fit times.

amplitude_stability_2-2.png amplitude_stability_22.png amplitude_stability_3-3.png amplitude_stability_33.png amplitude_stability_4-4.png amplitude_stability_44.png amplitude_stability_5-5.png amplitude_stability_55.png amplitude_stability_6-6.png amplitude_stability_66.png

Fits

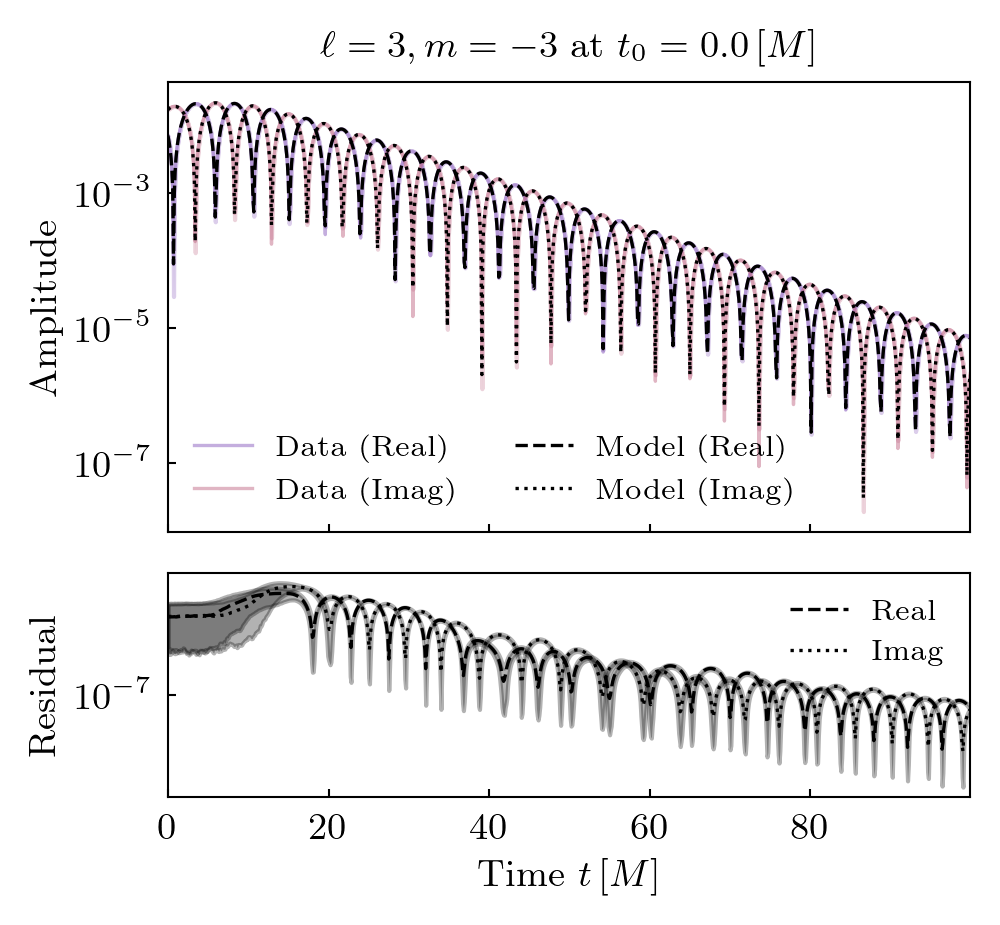

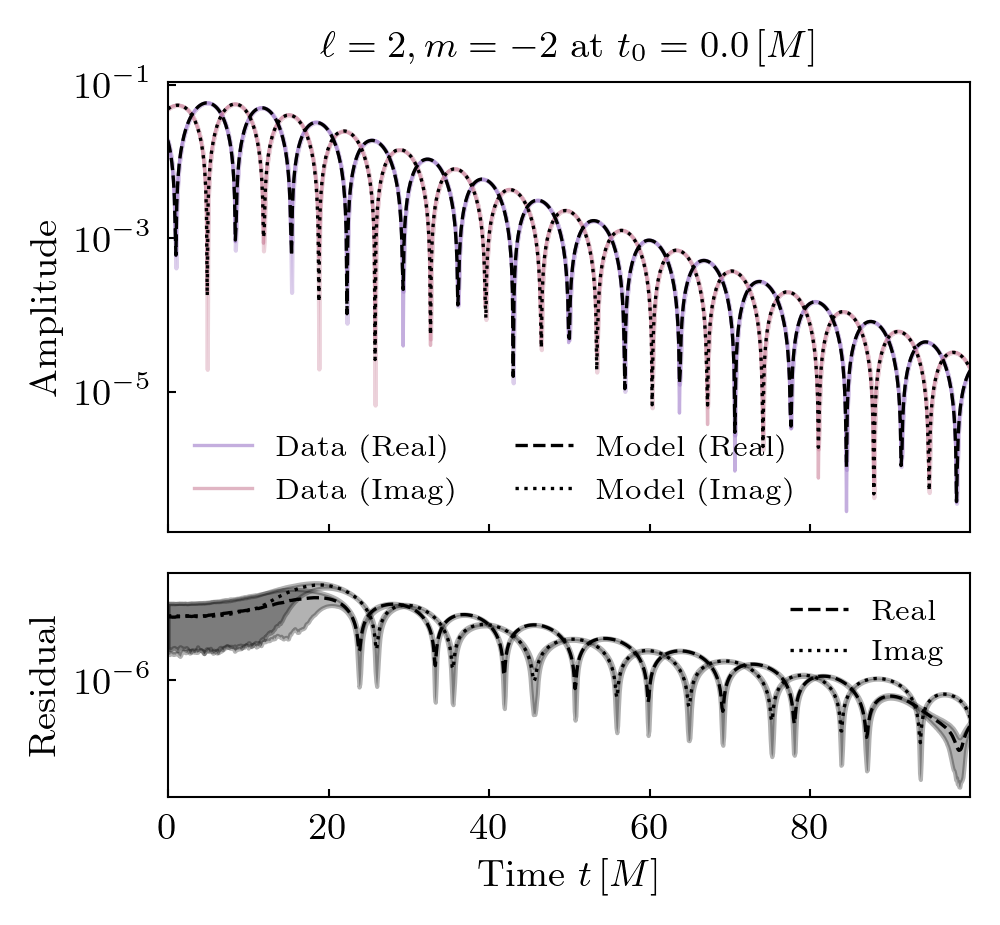

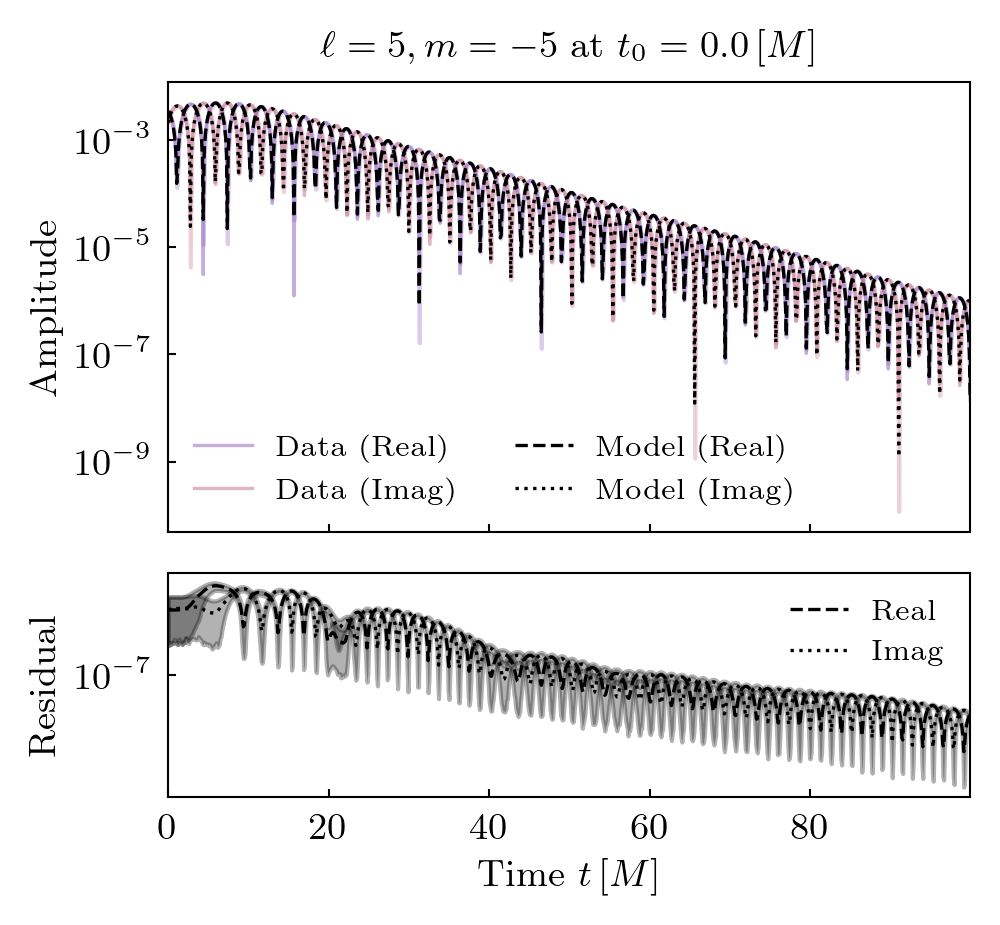

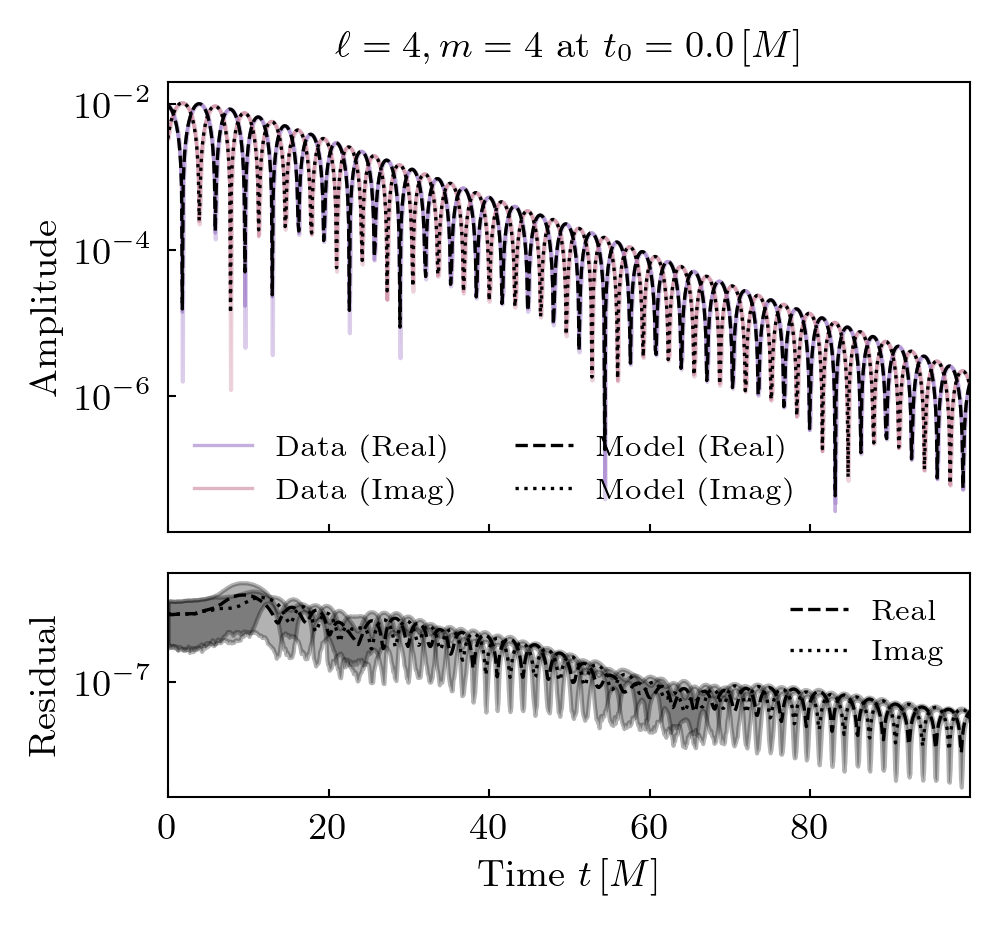

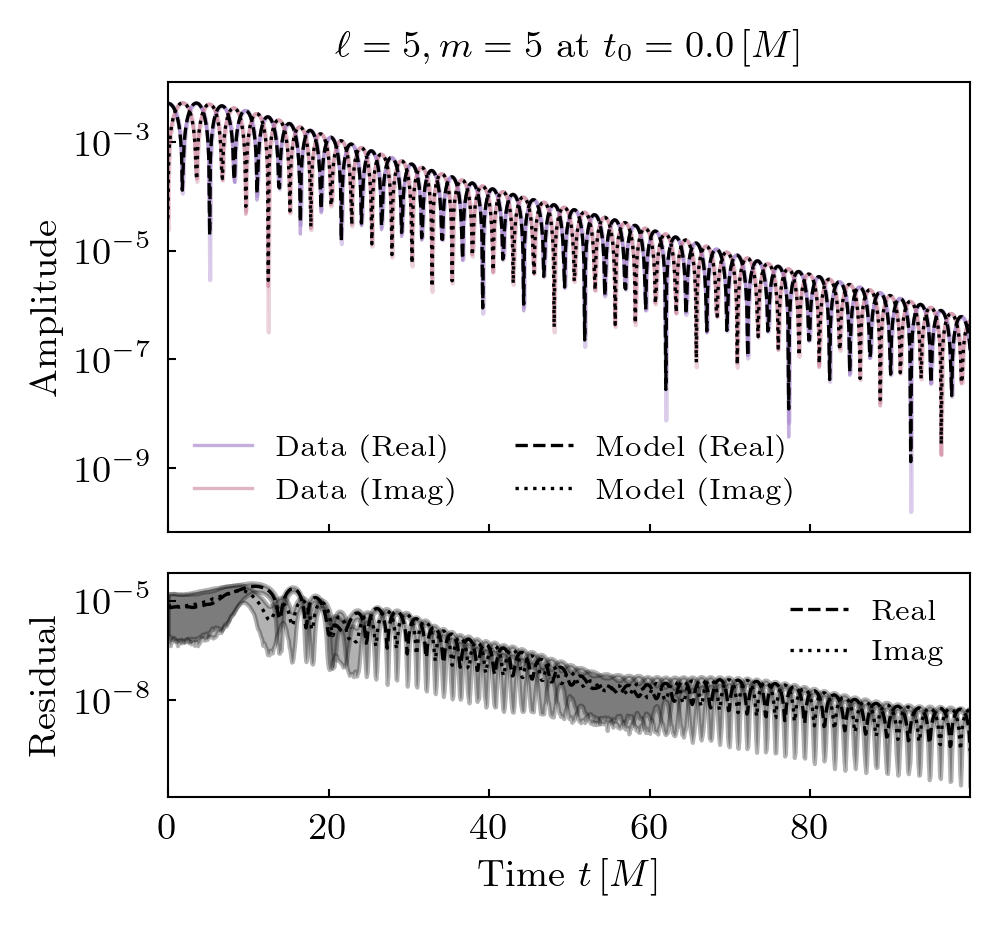

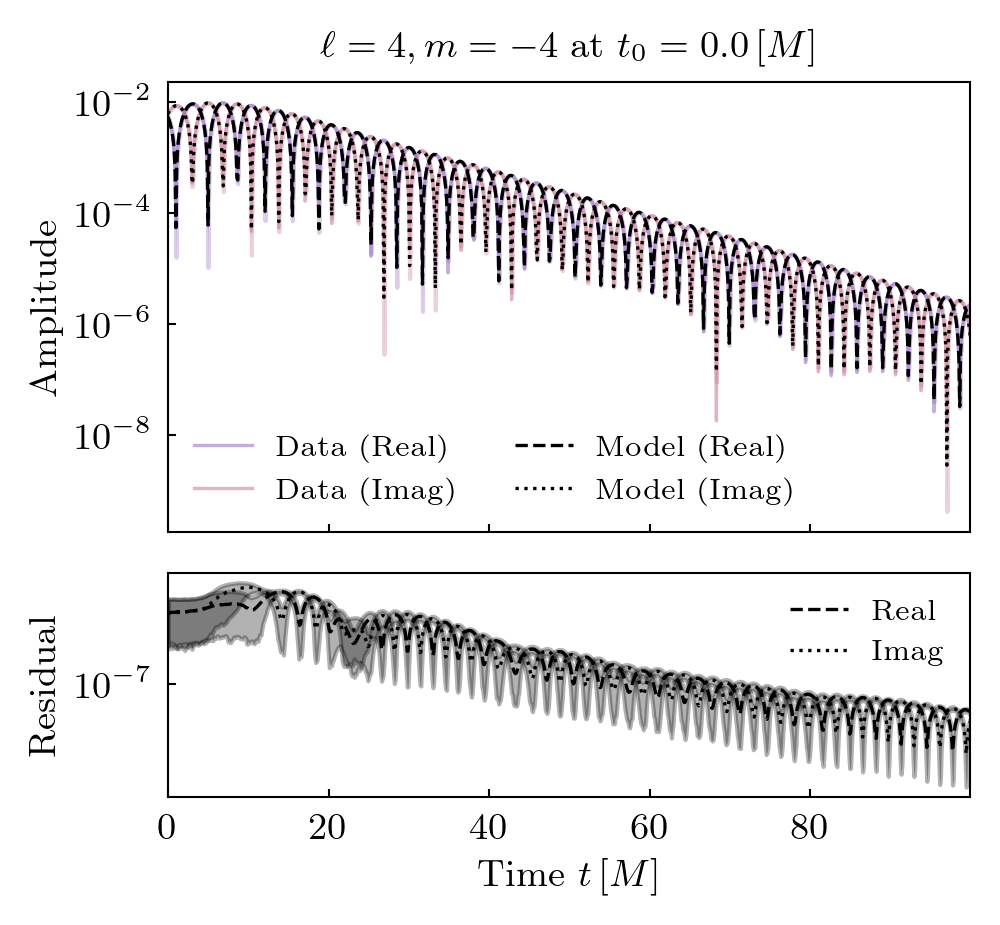

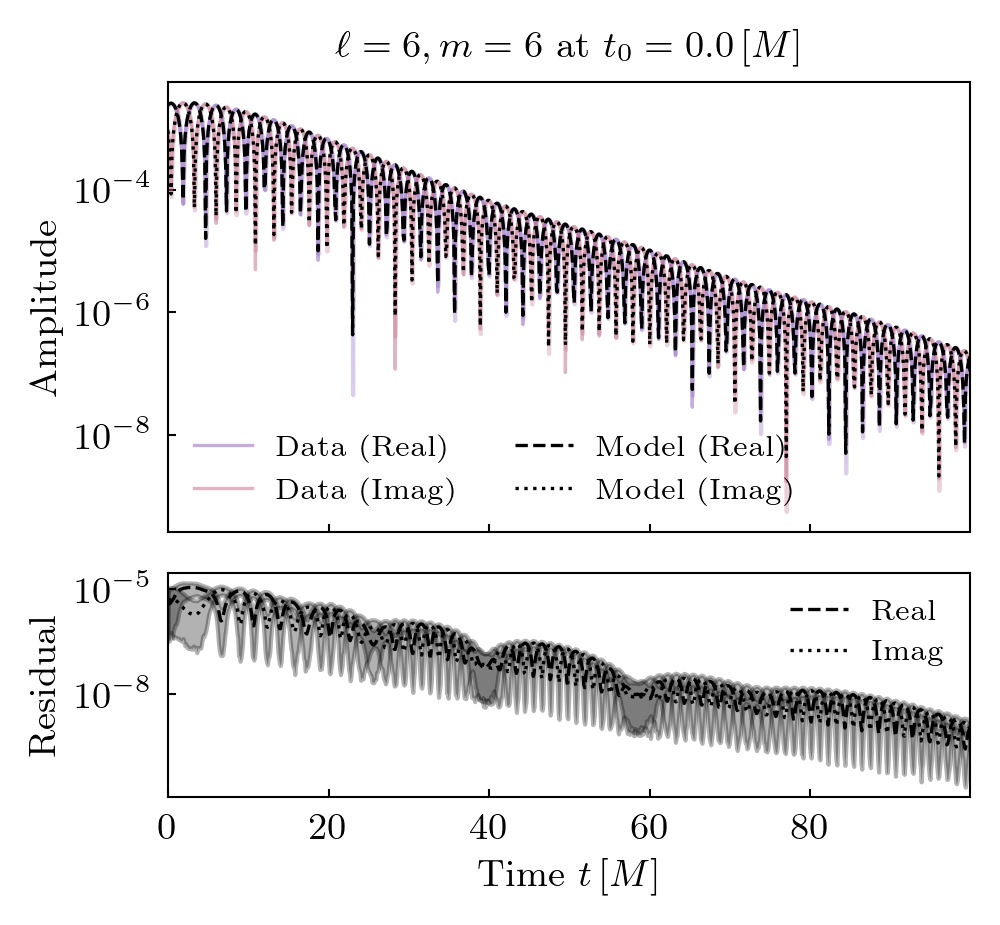

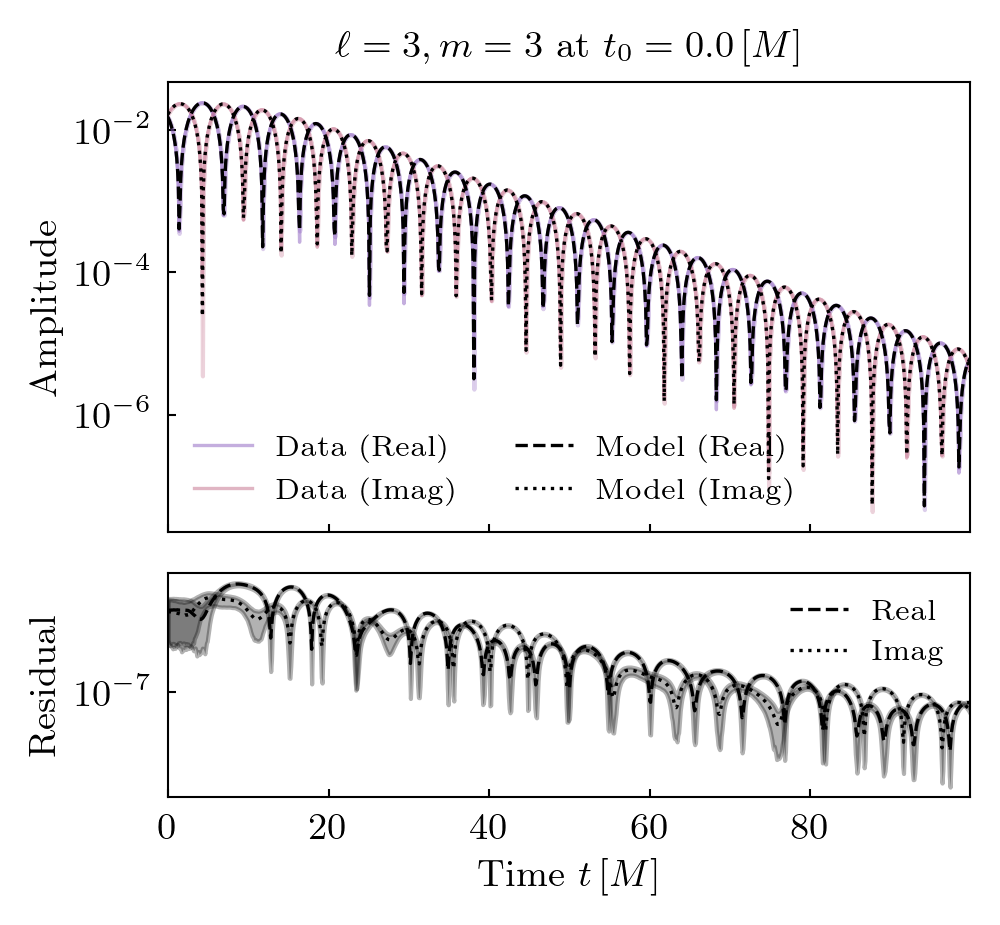

Model fits and data with residuals are shown. Start time is the earliest step at which the model fits well.

fits_2-2.png fits_22.png fits_3-3.png fits_33.png fits_4-4.png fits_44.png fits_5-5.png fits_55.png fits_6-6.png fits_66.png

Epsilon

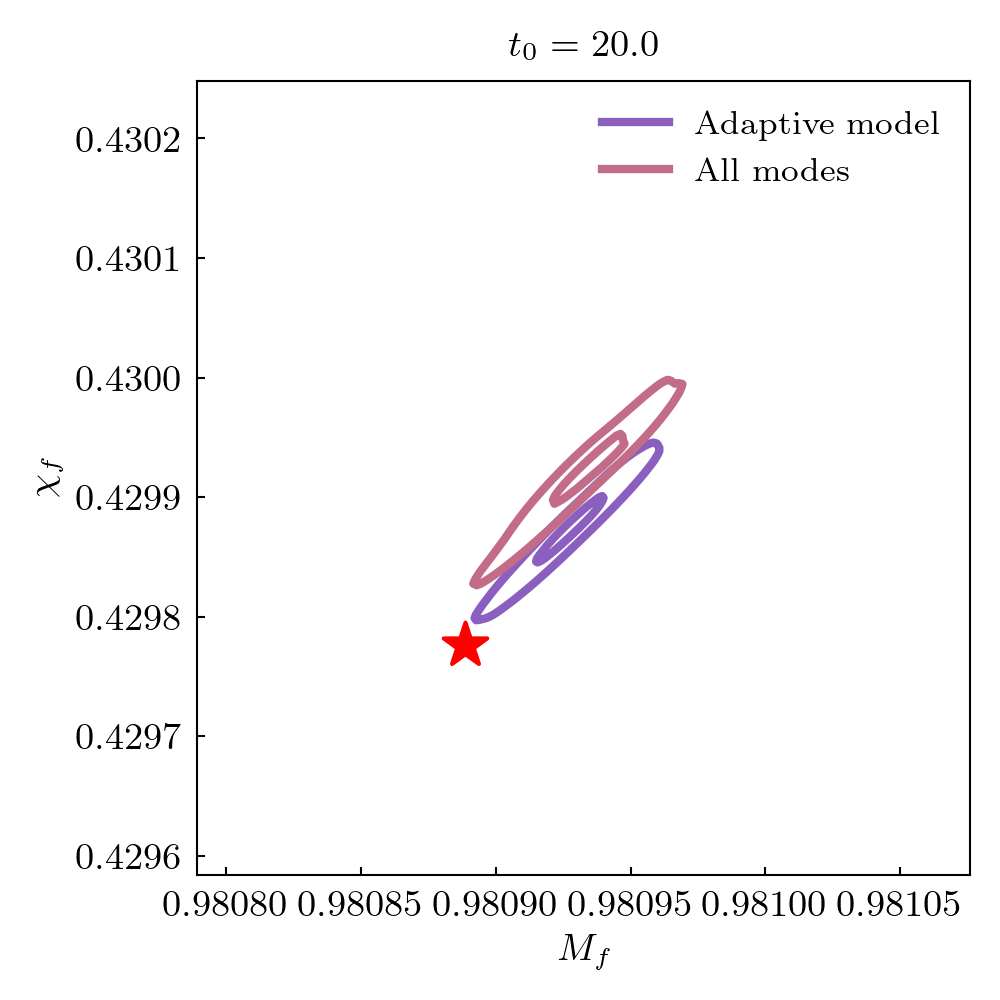

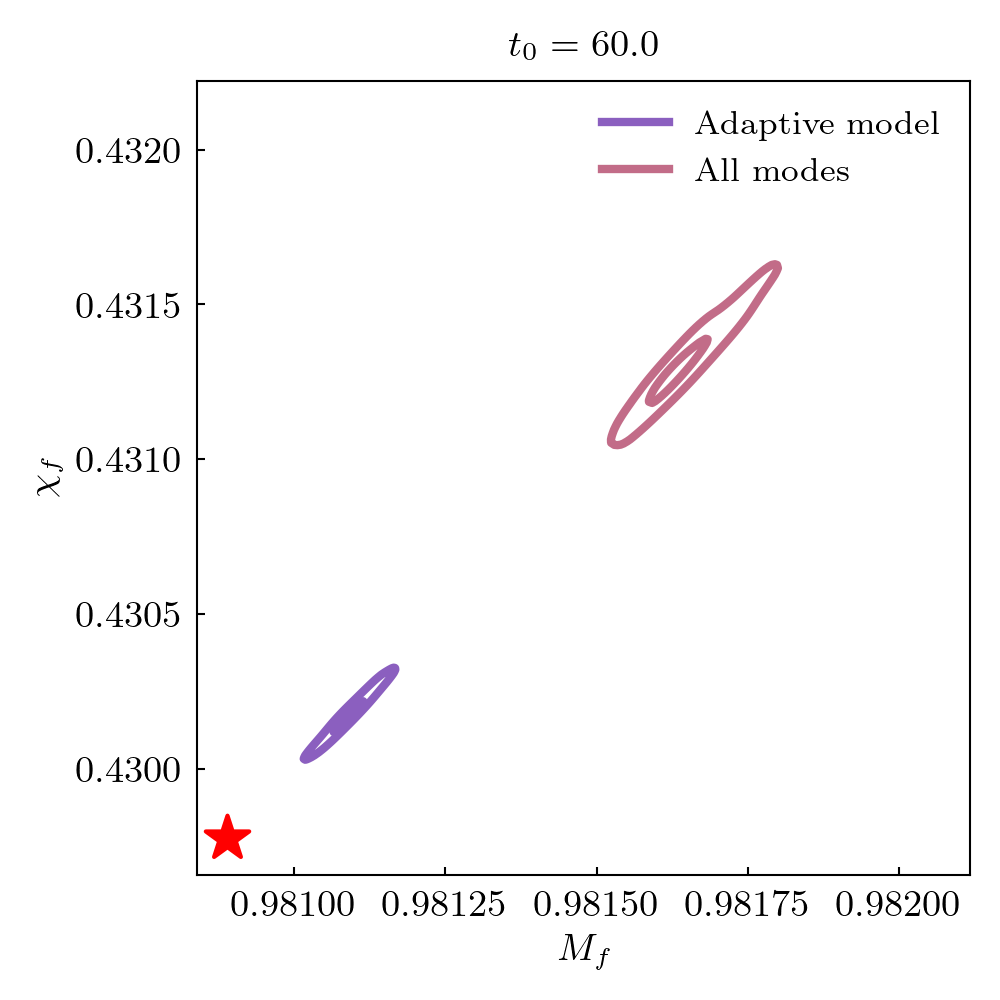

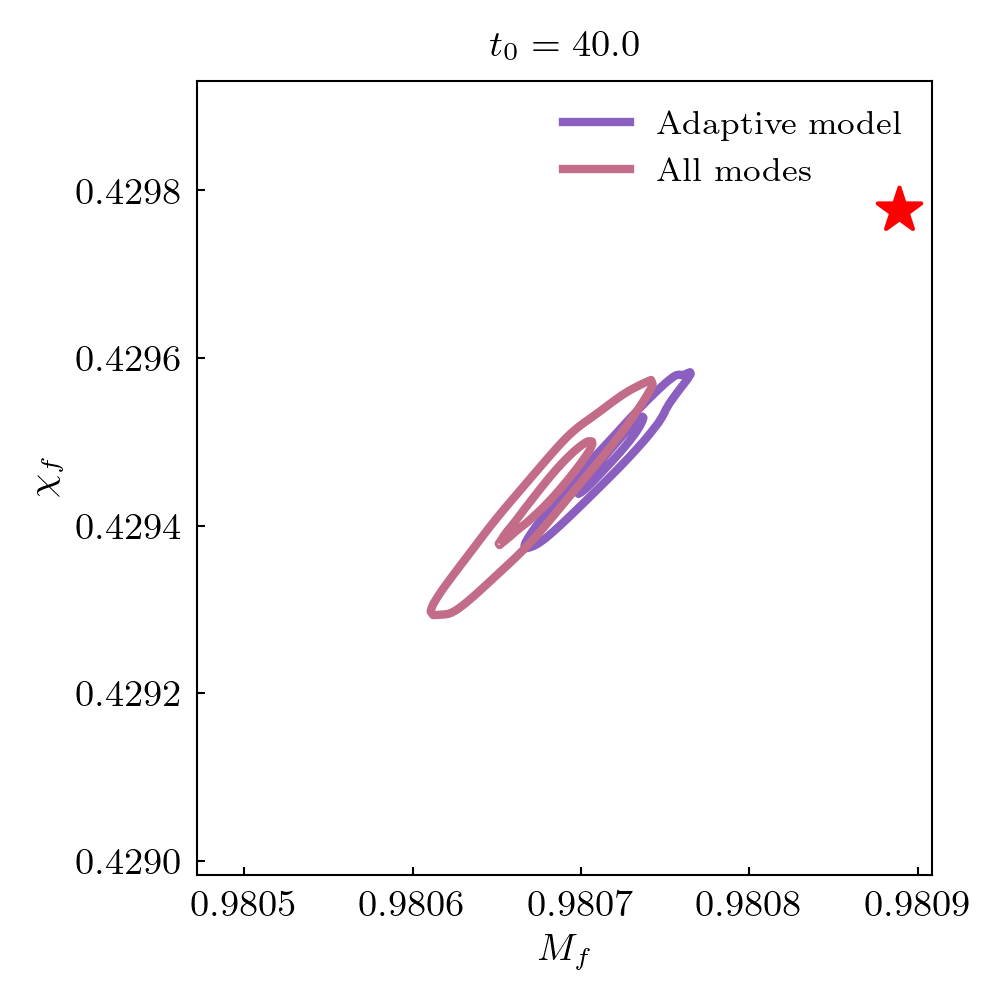

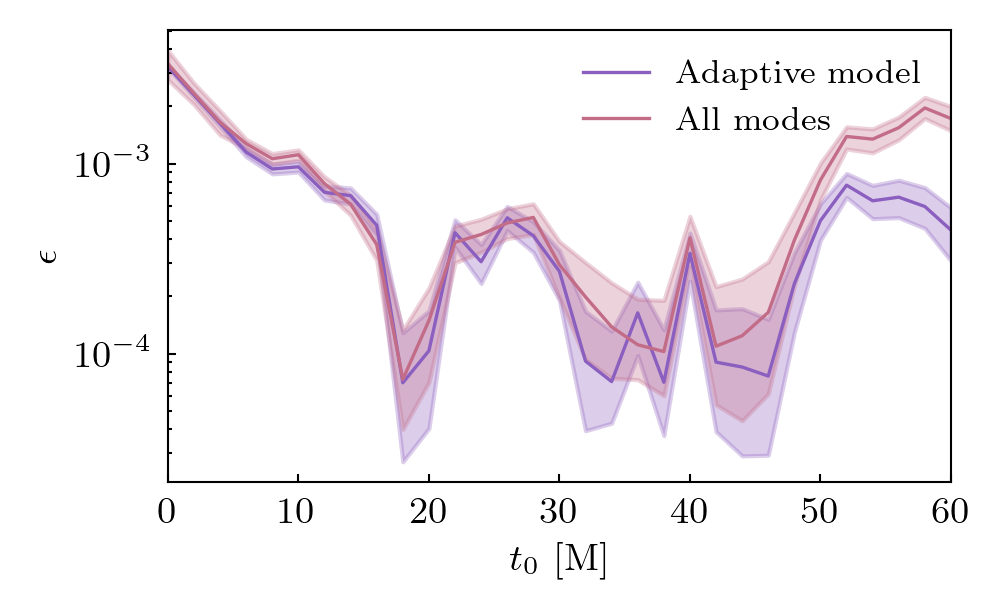

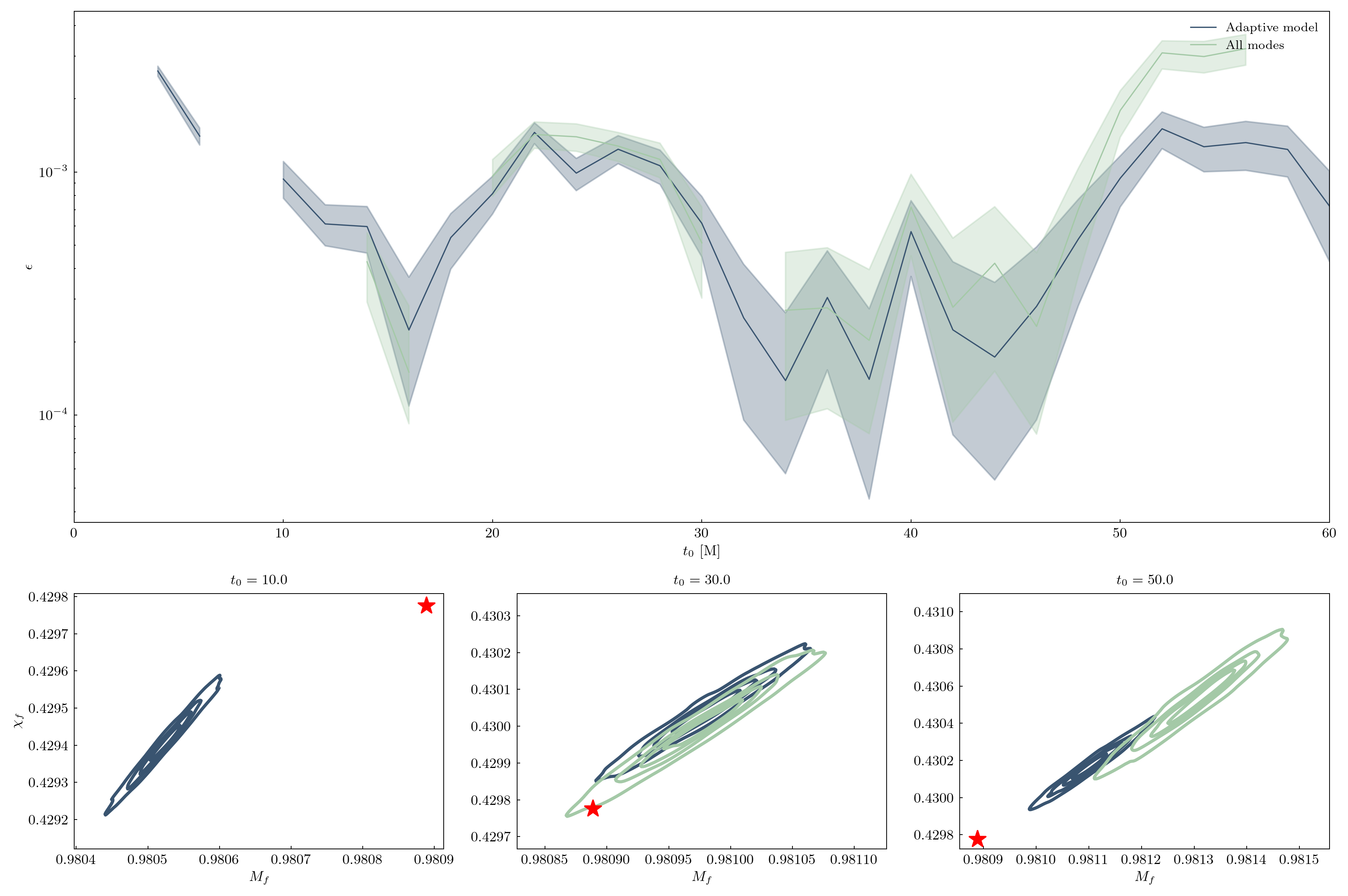

Remnant black hole mass and spin estimates are compared to NR values. Root square distance and posteriors at different start times are shown. The star indicates the NR value.

epsilon.png posterior_20.0.png posterior_40.0.png posterior_60.0.png
